PLC Automatic Glass Drilling and Coring Machine with Pneumatic Clamping

Product Categories

Foshan Star Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Hole diameter : 4-80mm

Model Number : SXZ1200

Table height : 920mm

MOQ : 1

Packaging Details : Protective Film

Neck and arm length : 1250mm

Brand Name : FOSHAN STAR

Payment Terms : T/T

Machine weight : 1200KG

Price : 19750-20000USD/SET

Delivery Time : 30 working days

Glass thickness : 4-25mm

Certification : CB,CE, RoHS, ISO9001

Table size : 3100mm*1360mm

Place of Origin : China

Contact Now

CNC Double Heads Glass Drilling Machine

Machine Overview

The drilling machine adopts PLC-based automation control and precision buffer technology, ensuring simple and reliable operation.

Product Advantages

Equipped with frequency speed control on the up/down drills, the A/B twin heads can work simultaneously (drilling two holes at once) or independently, delivering stable processing quality, high efficiency, and operator convenience.
A scan-function version is also available for processing scattered single glass sheets.

Technical Specifications

Specification	Value
Neck and Arm Length	1250mm
Hole Diameter Range	4mm - 80mm
Maximum Processing Size	2500mm * 2500mm
Glass Thickness Range	4mm - 25mm
Table Size	3100mm * 1360mm
Table Height	920mm
Machine External Dimensions	3100mm2500mm1750mm
Motor Power	6KW
Voltage	380V, 50HZ
Mchine weight	1200KG

Product Service

PLC Automatic Glass Drilling and Coring Machine with Pneumatic Clamping

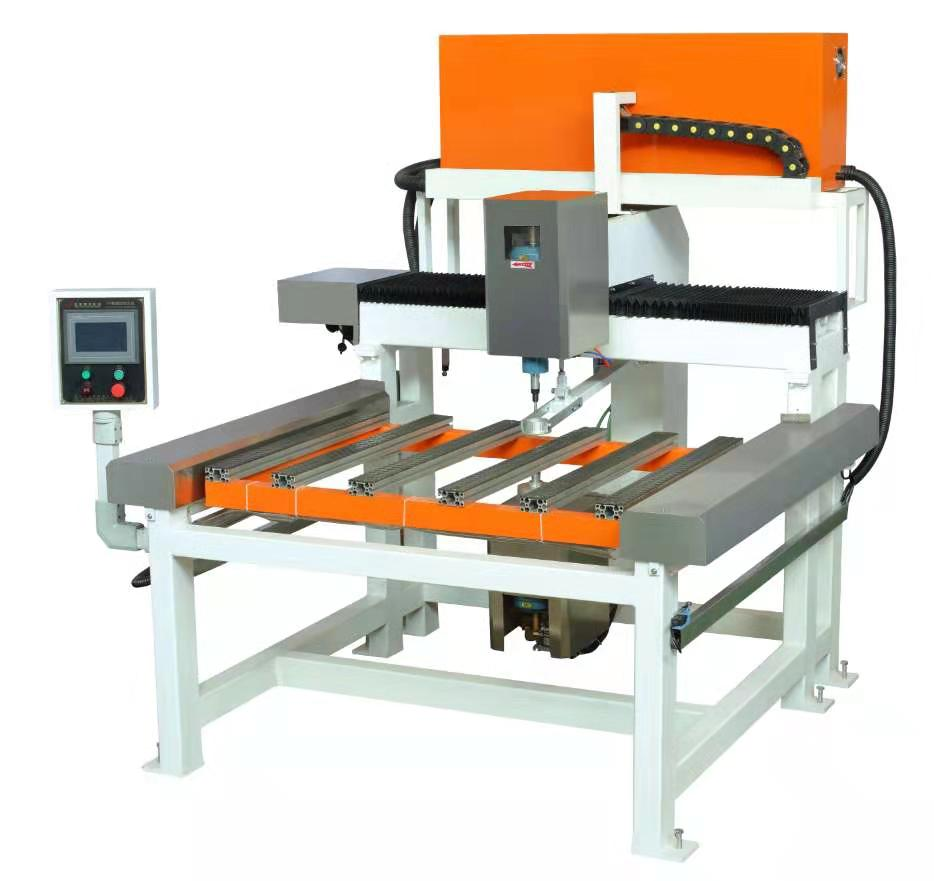

Machine Photos

PLC Automatic Glass Drilling and Coring Machine with Pneumatic Clamping
