Single Head Manual Glass Corner Grinding and Polish Machine

Product Categories

Foshan Star Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Certification : CB,CE, RoHS, ISO9001

Max bevel width : 35mm

Machine size : 1800*1000*1500mm

Price : 2300-3000USD/SET

Power : 2.2KW

Glass size : 2000mm

Brand Name : FOSHAN STAR

Model Number : ST1321

Weight : 200kg

Delivery Time : 30 working days

Turntable speed : 1.2～6r/min

Place of Origin : China

Glass thickness : 3-15mm

Payment Terms : T/T

Bevel angle : 0-20°

Packaging Details : Protective Film

Working speed : 0.8～4r/min

R angle range : R5-R60

MOQ : 1

Processing diameter : 110-2100mm

Contact Now

Single Head Manual Glass Corner Grinding and Polish Machine

Machine Overview

This machine is used for chamfering glass or stone. It grinds a 90-degree right angle into a smooth arc and polishes it in one pass.
Different grinding wheels can be fitted for different material thicknesses, and it processes both straight edges and round edges.
It is operated manually — simple to use and energy-saving.

Product Advantages

Dual-material processing — chamfers and edges both glass and stone
Right-angle to arc grinding — turns a 90° right angle into a smooth arc
Grind & polish in one pass — integrated grinding and polishing for a finished edge
Adjustable grinding wheels — switch wheels to suit different material thicknesses
Flexible edge profiles — supports both straight edges and round (arc) edges

Technical Specifications

Product Service

Single Head Manual Glass Corner Grinding and Polish Machine

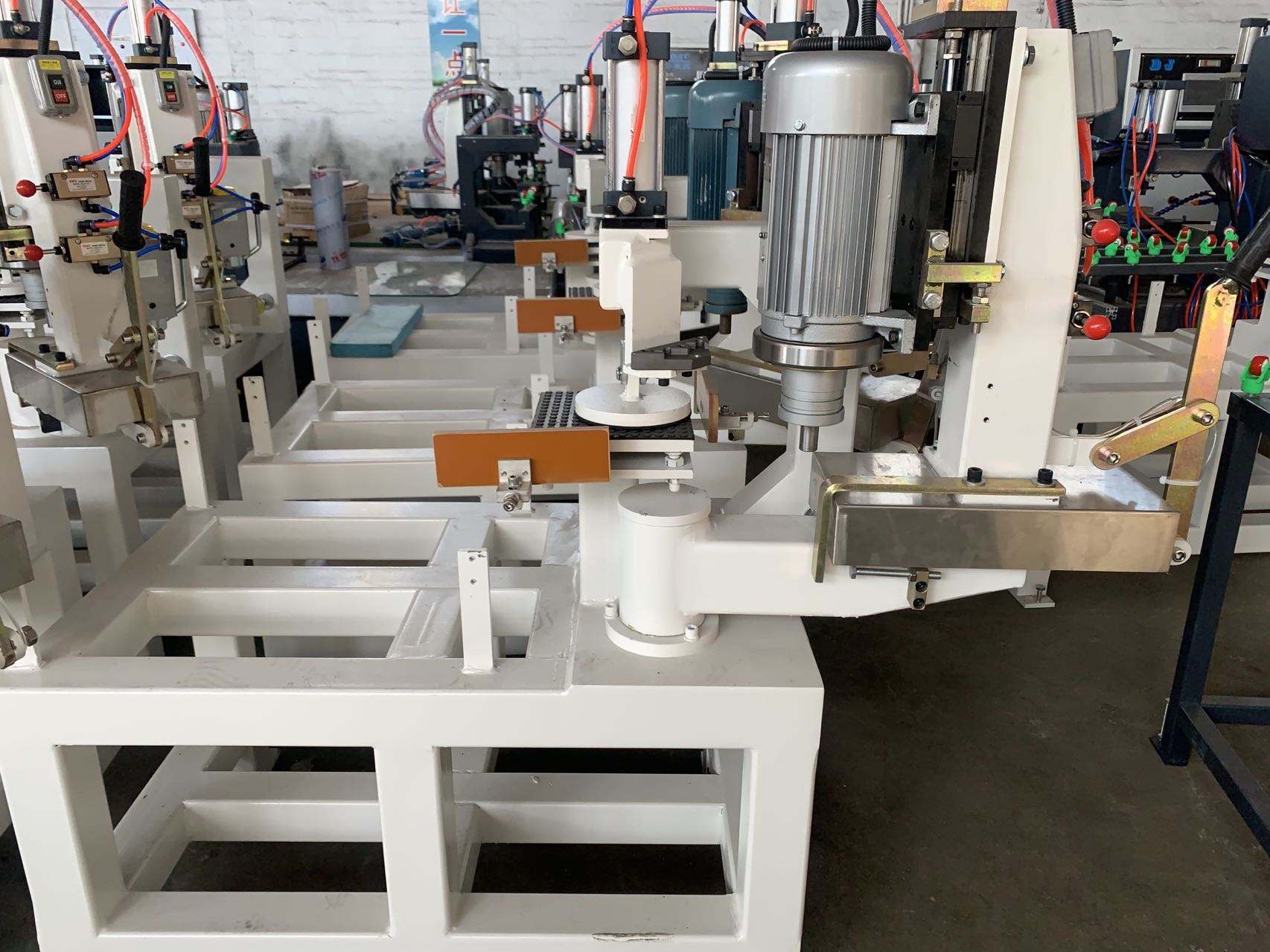

Machine Photos

Single Head Manual Glass Corner Grinding and Polish Machine

Single Head Manual Glass Corner Grinding and Polish Machine Images
