Two Component Sealing Machine Insulating Glass Curtain Wall Door Window Frame

Model Number : ST-DJ

Machine weight : 400kg

MOQ : 1

Packaging Details : Protective Film

Hole diameter : 4-80mm

Gluing pressure : 12-20Mpa

Glue output : 2L/Min

Payment Terms : T/T

Power : 180W

Price : 5800-6000USD/SET

Neck and arm length : 1250mm

Delivery Time : 30 working days

Air supply pressure : 0.3-0.5Mpa

Certification : CB,CE, RoHS, ISO9001

Table height : 920mm

Brand Name : FOSHAN STAR

Glass thickness : 3-19mm

Place of Origin : China

Table size : 3100mm*1360mm

Contact Now

Manual Two Component Sealing Machine

Machine Overview

This specialized adhesive applicator is purpose-built for hollow glass, curtain wall glass, and door & window frame production. It achieves one-step integrated mixing and dispensing of A-component and B-component adhesives for secondary sealing, making it ideal for adhesives that demand high mixing accuracy. It fully satisfies the production requirements of deep-processing enterprises engaged in doors, windows, curtain walls, and insulating (hollow) glass manufacturing.

Product Advantages

Integrated welded frame + pneumatic motor — the frame adopts an integral welding structure fitted with a domestic pneumatic motor, allowing operation with just one air hose.
Rigid, stable gantry — the gantry combined with a welded triangular structure provides rigid, stable support and greatly reduces vibration under cantilever working conditions.
User-friendly control panel — easy to operate, with clear display and straightforward button manipulation.
Durable mixing system — the stainless steel glue gun's mixing spindle guarantees long-term stable mixing performance.
Constant working pressure — a newly added gas storage tank keeps working pressure stable.
Reliable B-component pump — dual-column structure with double sealing pressure plates thoroughly solves the oxidation and leakage problems of black component adhesive.
Optimized pipeline design — overcomes the low flow rate defect frequently seen on comparable equipment.

Technical Specifications

Item	Description
Power	180W
Machine weight	400kg
Glass thickness	3~19mm
Air supply pressure	0.3-0.5Mpa
Gluing pressure	12-20Mpa
Glue output	2L/Min

Product Service

Two Component Sealing Machine Insulating Glass Curtain Wall Door Window Frame

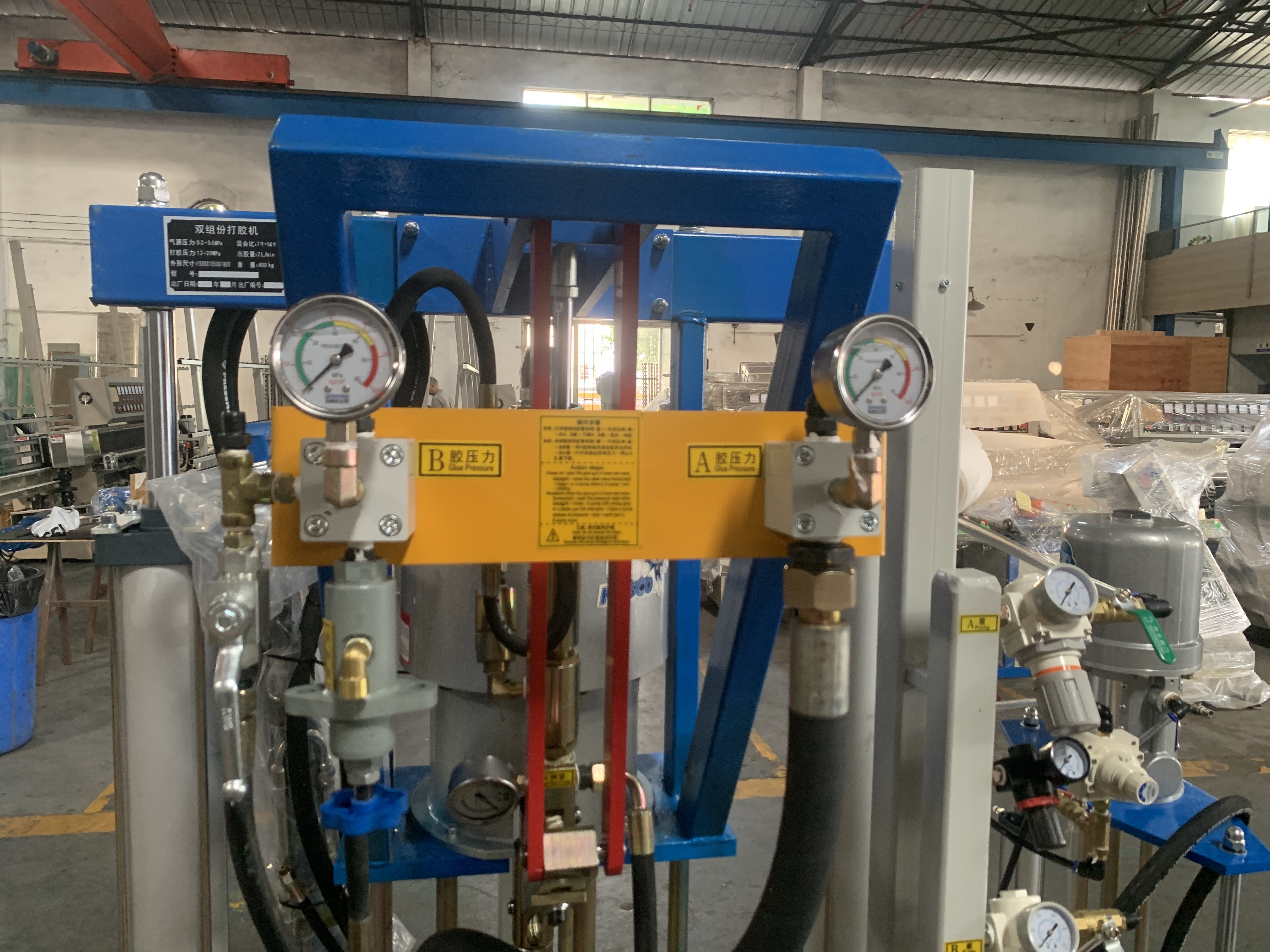

Machine Photos

Two Component Sealing Machine Insulating Glass Curtain Wall Door Window Frame

Two Component Sealing Machine Insulating Glass Curtain Wall Door Window Frame Images
